Fully Automated Multifunctional Magnetic Bead Purification System

Equipment Introduction

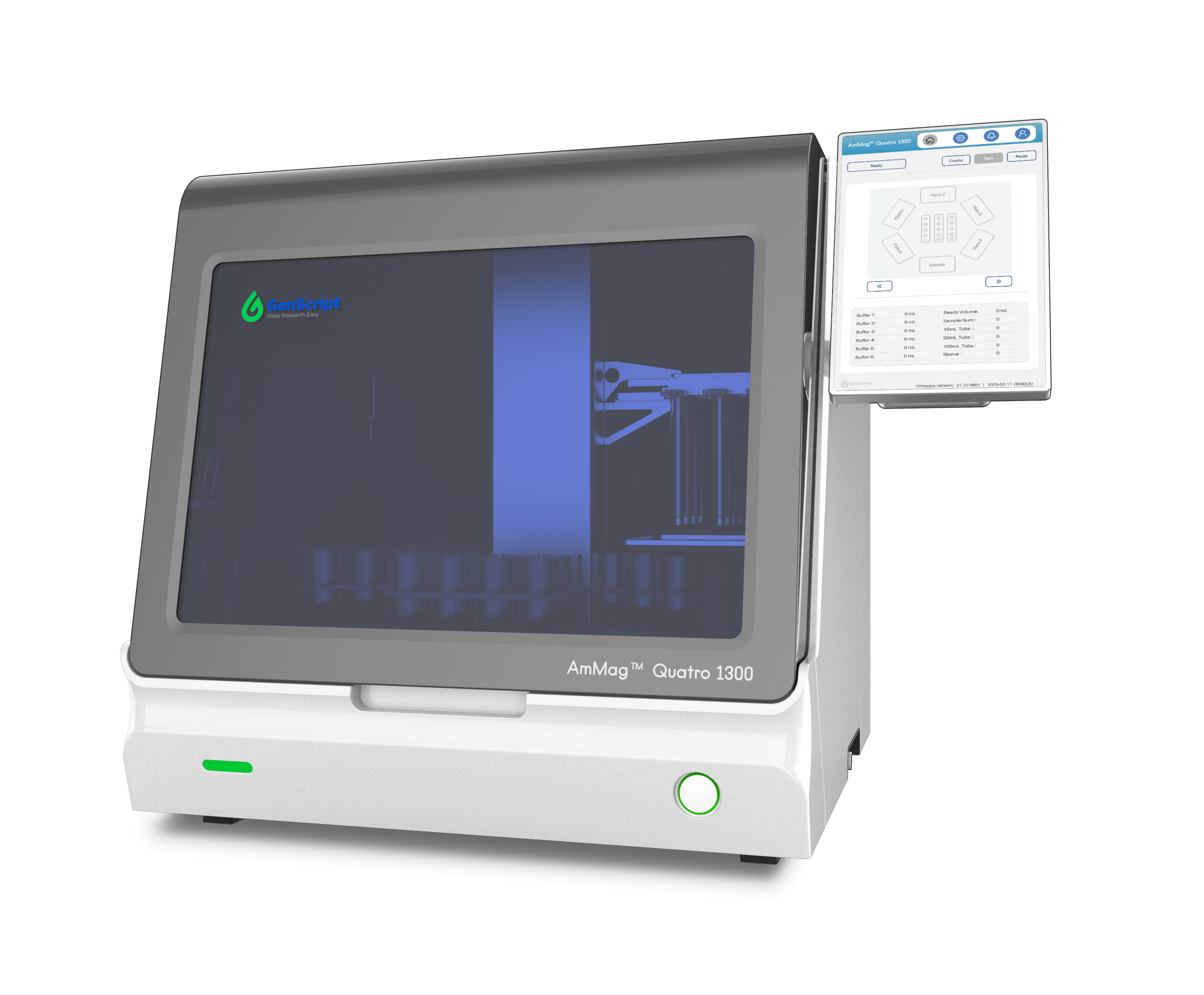

The AmMag™ Quatro ProAb 1300 is a fully automatic protein/antibody magnetic bead purification system capable of handling a single tube purification sample volume of up to 65 mL. When paired with GenScript's purification magnetic bead products, it allows for the easy acquisition of high-purity products, with consistent yield and purity across samples extracted from various tubes. The system operates based on the principle of magnetic bead purification, encompassing  critical steps such as incubation, impurity washing, and elution. It is fully automated, requiring no manual intervention, and efficiently extracts high-purity target products from fermentation broth to sample. Compared to traditional column chromatography, the AmMag™ Quatro ProAb 1300 demonstrates significant advantages in automation and high-throughput capabilities. It is capable of purifying 12 samples in just 30 minutes, thereby substantially reducing manpower and time requirements, and making efficient purification readily attainable. Additionally, it is suitable for purifying samples of varying volumes, offering the flexibility necessary to meet diverse purification needs.

Specification

Samples	Using magnetic bead method, a single purification of ≤ 12 samples can be achieved.
Workstations	≤ 6 workstations, supporting free setting of cleaning and washing steps.
Reagent channels	≤ 6 reagent channels, each channel can be freely configured by users.
Automatic liquid separation volume range at each workstation	0.2 mL to 65 mL
Minimum elution volume for each workstation	Small magnetic rods (1 mL); large magnetic rods (2 mL).
Maximum sample volume for a single tube	65 mL
Ultraviolet (UV) sterilization function	Yes
Tolerance to sodium hydroxide concentration	0-1 mol/L
Adaptability of consumables	25mL, 50mL, and 100mL centrifuge tubes.

Brochure

AmMag™ Quatro 1300_Brochure_EN
