High-Precision MEA System
Equipment Introduction

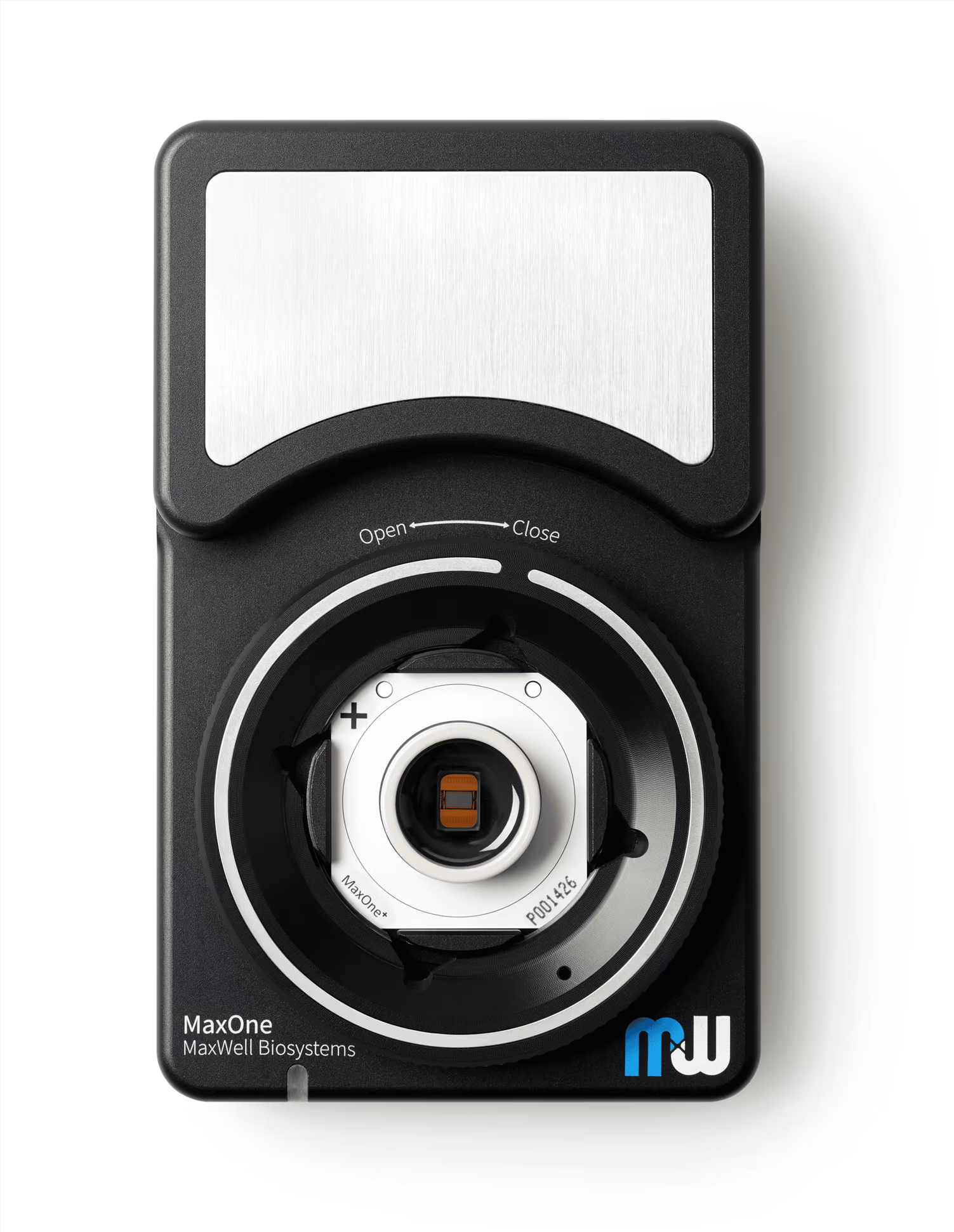

MaxOne Single-Well High-Density Microelectrode Arrays (HD-MEA) represent the next-generation electrophysiology platform that empowers scientists to tackle a wide range of applications through its precise capture of electrical signatures from electrogenic cells while offering precise control via electrical stimulation, boasting unmatched spatial and temporal resolution to capture cellular signals down to single-cell and even sub-cellular detail; notably, MaxOne features 26,400 high-density electrodes at 3,265 electrodes/mm² with a 20 kHz sampling rate, ensuring high-fidelity signal acquisition for advanced research endeavors.
Specification
| Total number of electrodes | 26400 |
| Electrode density | 3265 electrodes/mm² |
| Electrode center-to-center distance | 17.5 µm |
| Electrode size | 11.5 x 11.5 µm² |
| Sampling rate | 20 kHz/channel |
| Number of recording channels | 1020 |
| Electrical stimulation | Yes |
| Perfusion system | Yes |
| MaxOne tissue holder | Yes |
