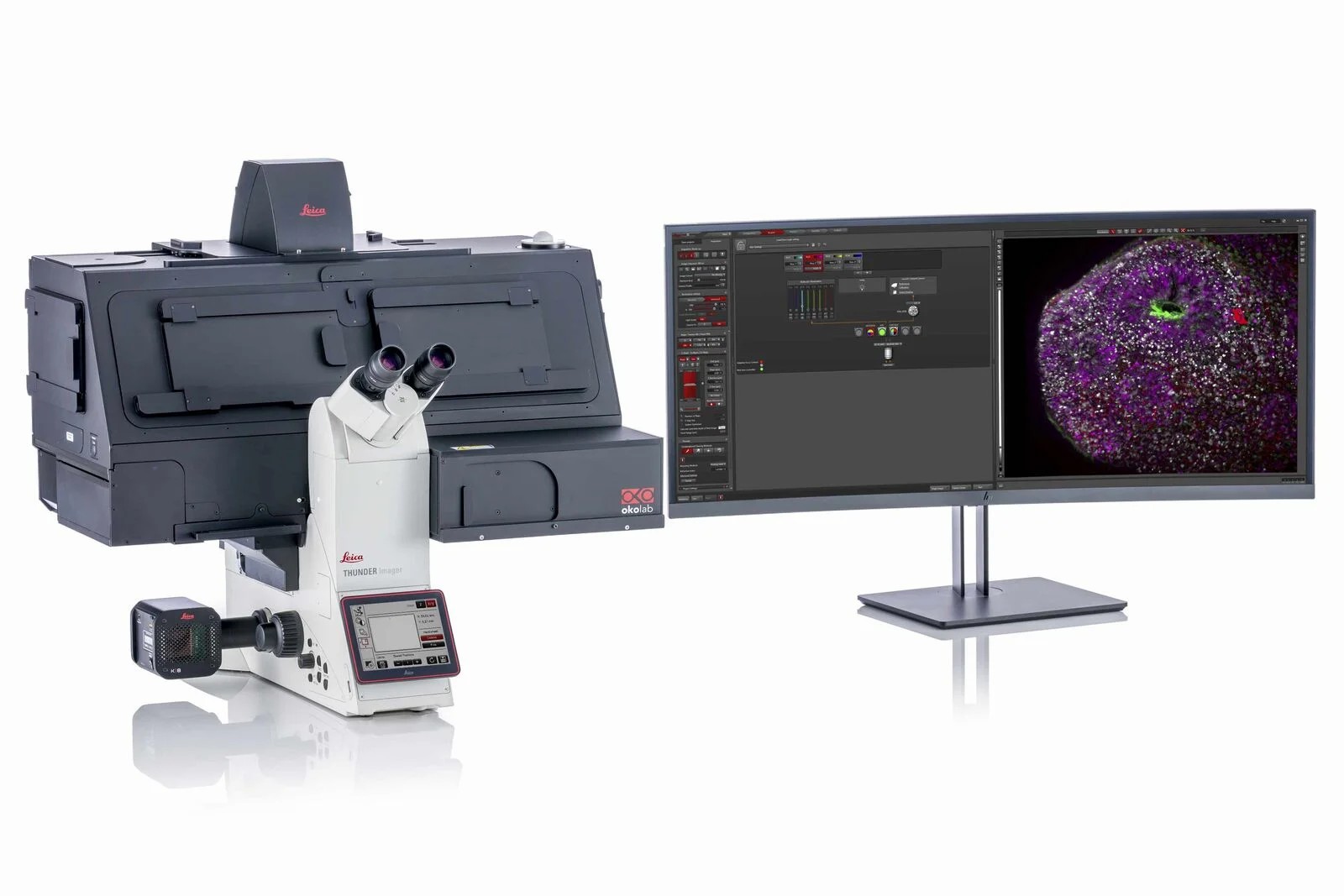

High-resolution live cell imaging system

Model:

DMi8 automated with Thunder

Location:

123C, 1F, E4

Equipment Introduction

To answer important scientific questions, THUNDER Imaging Systems enable you to obtain a clear view of details, even deep within an intact sample, in real time without out-of-focus blur. THUNDER brings you high-speed, multicolor imaging of thin and thick samples with increased temporal resolution in the first attempt itself. Sharp imaging of 2D and 3D specimens is as easy as working with your favorite camera-based fluorescence microscope.

Specification

Objectives	10X/ 0.32 PH L 20X/ 0.40 CORR PH1 20X/ 0.80 DIC 40X/ 0.95 CORR DIC 63X/ 1.40-0.60 OIL DIC 100X/ 1.4-0.70 OIL DIC
Filters	Quad Filter Ex 436/28, 506/21, 578/24, 730/40 Dichroic 459, 523, 598, 763 Em 473/22, 539/24, 641/78, 810/80 Quad Filter Ex 391/32, 479/33, 554/24, 638/31 Dichroic 415, 500, 572, 660 Em 435/30, 519/25, 594/32, 695/58 DAPI Ex 405/60, Dichroic 455, Em 470/40 FITC Ex 470/40, Dichroic 510, Em 515 LP RHOD Ex 535/50, Dichroic 580, Em 590 LP Y5 Ex 620/60, Dichroic 660, Em 700/75 *External rapid filter wheel: 460/80, 535/70, 590/50, 642/80, 100%
Light source	LED, 8 spectral lines, 400 nm, 435 nm, 470 nm, 500 nm, 550 nm, 580 nm, 635 nm, 740 nm
Detector	sCMOS camera, QE 95%, 95 FPS @ 11 bit mode

Brochure

DMi8 automated with Thunder_Brochure_EN
