Laser Confocal Microscope
Equipment Introduction

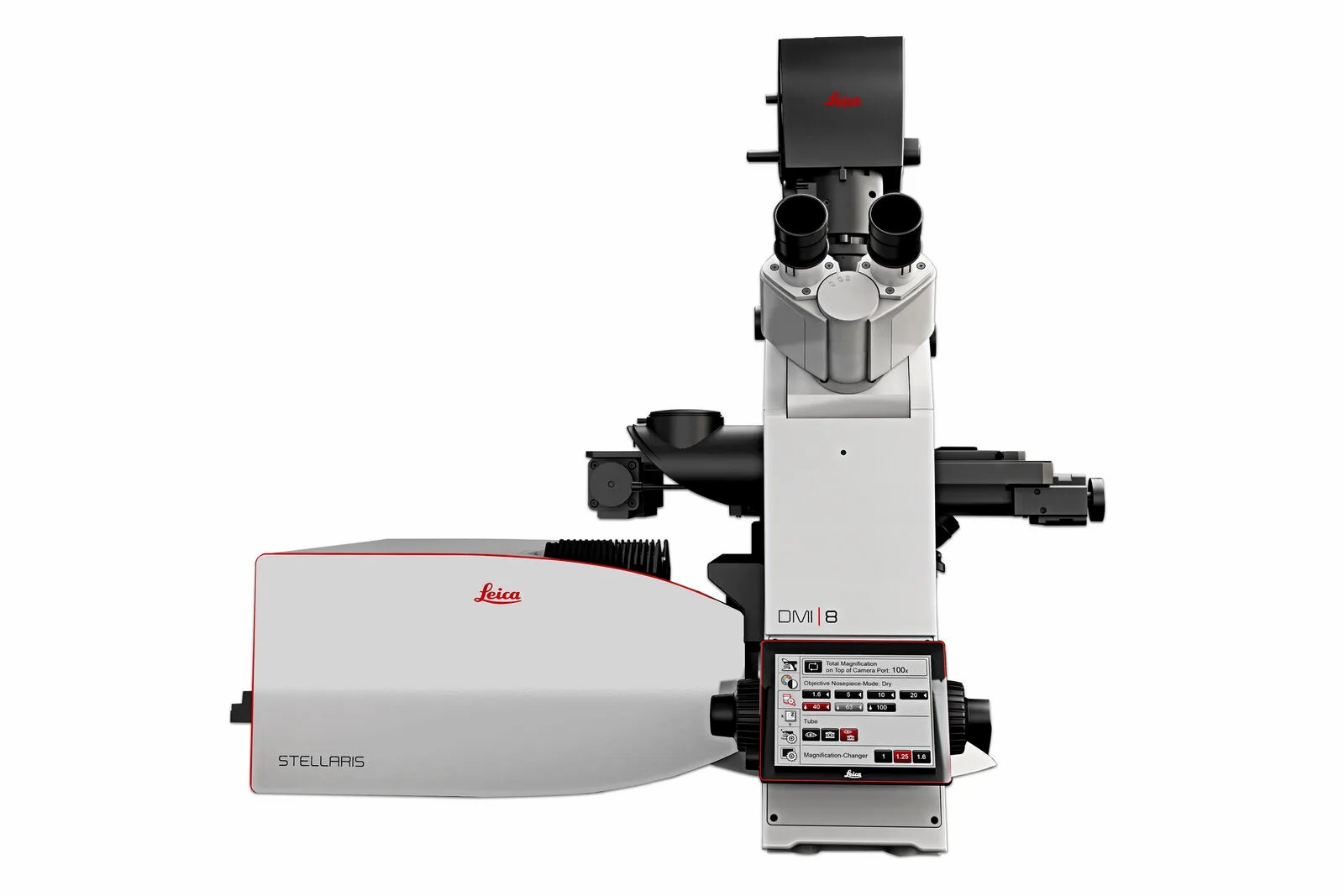

STELLARIS 5 delivers the very best of the Leica confocal platform. It is a powerful core system with Acousto-Optical Beam Splitter (AOBS), and Power HyD S detectors. STELLARIS offers Spectral Detection, Photon Counting Detectors, and Confocal Super Resolution.Multi-channel confocal imaging is easily attainable thanks to the smart user interface, ImageCompass, which guides you intuitively through your experiment set up and acquisition.
Specification
| Objectives | *10X/ 0.4 DIC *20X/ 0.75 DIC *40X/ 0.95 DIC *63X oil/ 1.4 DIC |
| Lasers | 405 nm, 488 nm, 561 nm, 638 nm |
| Filters | DAPI, FITC, RHOD, CY5 |
| Scanner performance | 10fps@512x512 bidirection scan 5200 lines/s |
| Detection range | 410 nm - 850 nm |
| Software | Lightning, FRET, Tiles, Fluorescence intensity analysis, et al. |
