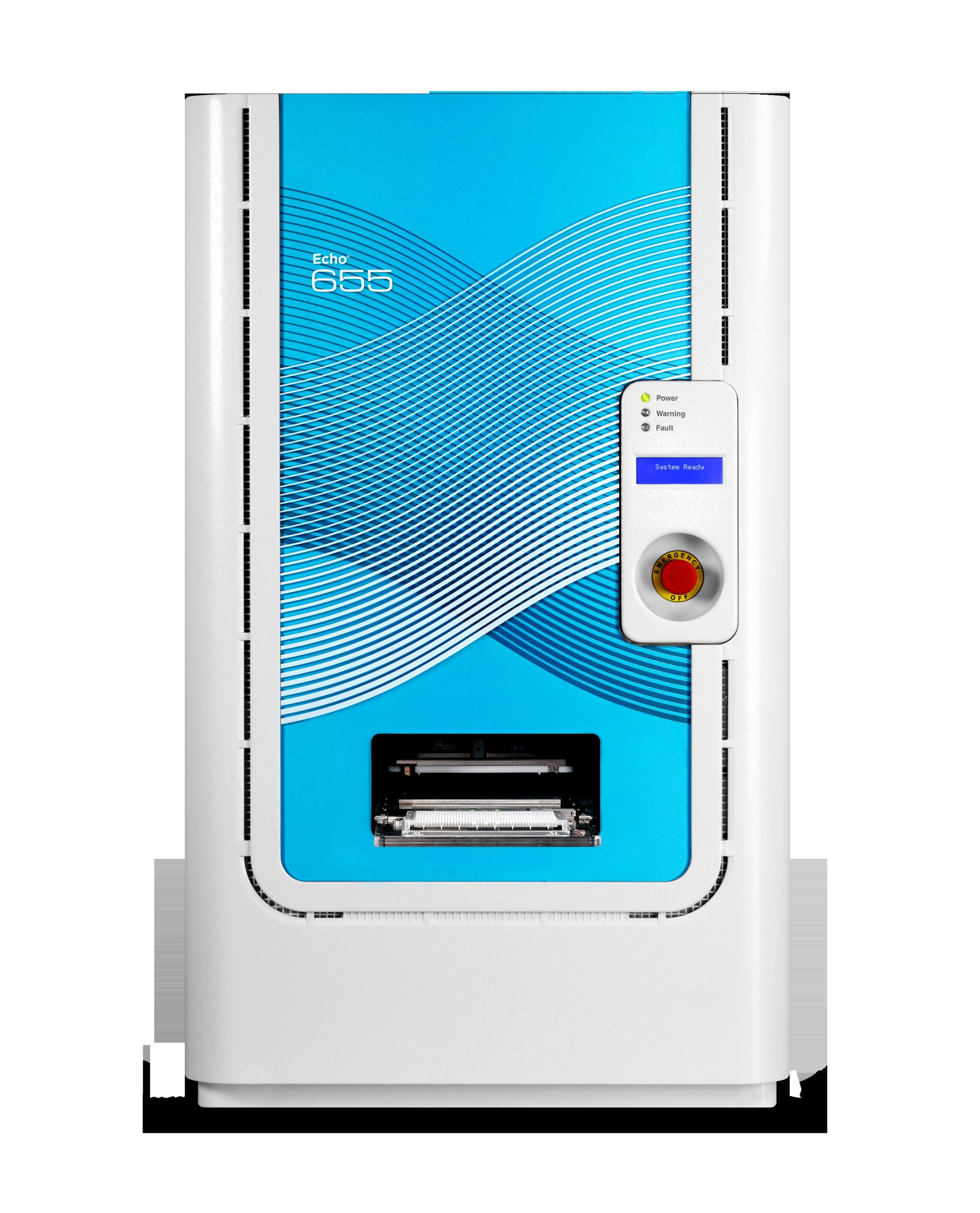

Nano Liquid Handler Echo 655
Equipment Introduction
Echo 655 utilizes ADE (acoustic droplet ejection) technology patented by Labcyte Inc. Ultrasound-based ADE precisely transfers nanoliter volumes of liquids, including DMSO, buffers with or without proteins or nucleic acids, surfactants, cell culture media and serum between Echo Qualified source microplates and most ANSI/SLAS-compliant destination microplates.
Specification
| Droplet volume | 2.5 nL |
| Volume transfer range | 2.5 nL-5 uL |
| Liquid types | DMSO, PCR and qPCR reagents, synthetic biology reagents, NGS reagents, primers and probes, cell culture medium, proteins, nucleic acids, up to 50% glycerol, serum, plasma, antibodies, enzyme and protein crystallographic reagents |
| Transfer capability | deviation from target volume less than 10% |
| Transfer accuracy | CV<8% (excluding protein crystallization liquid category) |
| Source plate | All 384 and 1536 well microplates that meet Echo requirements |
| Target plate | All Echo qualified microplates and most ANSI/SBS compliant microplates with well heights ranging from 8 to 16 mm, 96, 384, 1536, and 3456 wells |
